LumaControl Alexa & Google Smart Light Touch Switch (No Neutral, 1–3 Gang)
LumaControl Alexa & Google Smart Light Touch Switch (No Neutral, 1–3 Gang)
Impossible de charger la disponibilité du service de retrait
SPECIFICATIONS
App: Tuya Smart&Smart Life
Application: Home, Office, Small business Touch Switch
Brand Name: BONDA
Certification: RoHS,FCC,CE,ce,FCC,ROHS
Choice: yes
Color: White/Black/Gray/Gold
Control Mode: App/433MHz RF/Manual
Current: 10A
Features: 1/2/3Gang WiFi Touch Switch
Hign-concerned Chemical: None
Is Smart Device: YES
Item Type: SWITCHES
Material: Plastic,PC+ Toughened Glass Panel Switch
Model Number: 655/B655
Origin: Mainland China
RF Receiver: 433MHz
Rated Load: 5-500W/Gang
Size: 86*86mm
Switch Type: APP Control
Voice Control: Support Google Home&Amazon Alexa
Voltage: 100-250V 50/60Hz
Warranty: 1 Year
WiFi Standard: IEEE 802.11bgn 2.4GHz
semi_Choice: yes
1.RF 433MHz Remote Control:The smart wifi switch could pair with any of 433Mhz RF transmitters. Even if there is no wifi signal at home, the device still could be controlled by RF transmitter.
2.App Remote Control:As long as your smart phone or tablet has 4G or WIFI network, you can control your lights by the App "Tuya smart or Smart Life".
3.Voice control:Perfectly Compatible with Alexa and Work with Google Home. Turn on/off lights with voice commands when your hands are full.
4.Timer Setting:Setting a schedule or timer on/off your lights on night and morning, and then your will never go back to a dark house when you go back home at dusk. Moreover, you could quietly waked up by scheduled light on every morning.
5.Share Function:Sharing devices with your family members to eliminate extra steps for connection.
6.Smart Scene:Creating your own scene to trigger ON/OFF home appliances by departure mode, home mode, temperature, humidity, or other environmental conditions.

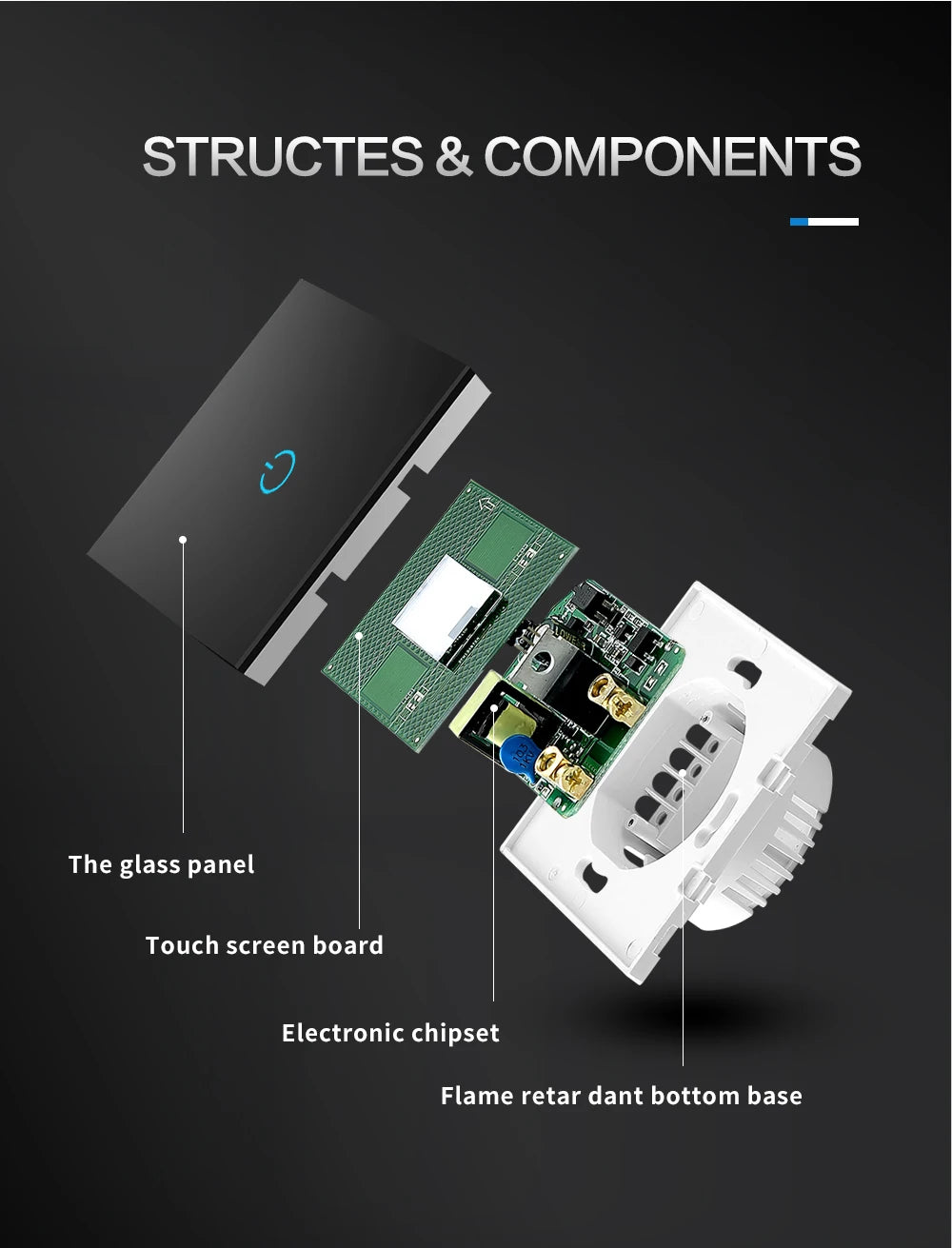

7.Safety and Certification:The wall switch adopts premium materials, such as fire-resistant shell, phosphor bronze connects and advanced PC+TEMPERED GLASS, can provide fire prevention, overload protection to protect your family.
8.Our all products certificated by CE, FCC, and RoHS. Without using any harmful chemical substances, please fell relived about usage.
Specification:
Brand: BONDA
Item No:655
Color: White/Black/Glod/Gray
Material: PC+ Toughened Glass Panel
Voltage: 100-250V 50/60Hz
Current: 10A
Rated Load: 5-150W/Gang
Power Consumption: ≤0.5W
Working Temperature: 0℃~40℃
RF: 433MHz
RF Standard Code: 1527
WIFI Standard: IEEE 802.11bgn 2.4Ghz
Support System: Above iOS 8.0 or Android 4.3
Hub Requirement: No
Network Security: WPA/WPA2"
Control Mode: APP/RF/Manual
Certification: CE, RoHS
APP: Tuya Smart/Smart Life
Note:
1. Support most of lamps. We suggest to use over 5W LED lamp for L1. Not support dimmable lamps.
2. The capacitor must be connected with L and N of the lamp of L1. Not behind the switch.
3. This switch is single-pole, and it only supports 1 way control.
4.Our friendly and reliable after-sales service team can provide the most professional solutions for any of your problems. Please rest assured for shopping.
5.All orders will be shipped out within 24 hours, except order placed in Chinese holidays.
Package Content
1*Smart Wifi Switch
1*Capacitor
2*Screws
Distribution capacitorsNote:Please connect the switch and have a look
1 Connect the switch if you do not connect the capacitor (yellow), you must connect the neutral line (N), otherwise there is no reaction when you touch the switch
2. If the switch is not connected to the neutral line (N), it must be connected directly to the lamp with a capacitor (yellow), otherwise there is no reaction when touching the switch
Description
Q: What happens if the light keeps flashing after the switch panel is wired?
Answer: If no neutral wire is connected and no capacitor is connected, the light bulb will flash
Q: In the absence of the neutral wire, the touch switch panel does not respond. What's going on?
Answer: If there is no neutral wire, a capacitor must be connected, otherwise the touch switch will not respond
Q: Can panels be used with or without neutral wires?
Answer: It can be used. Use normal neutral wire to connect. If there is no neutral wire, a capacitor must be connected.
